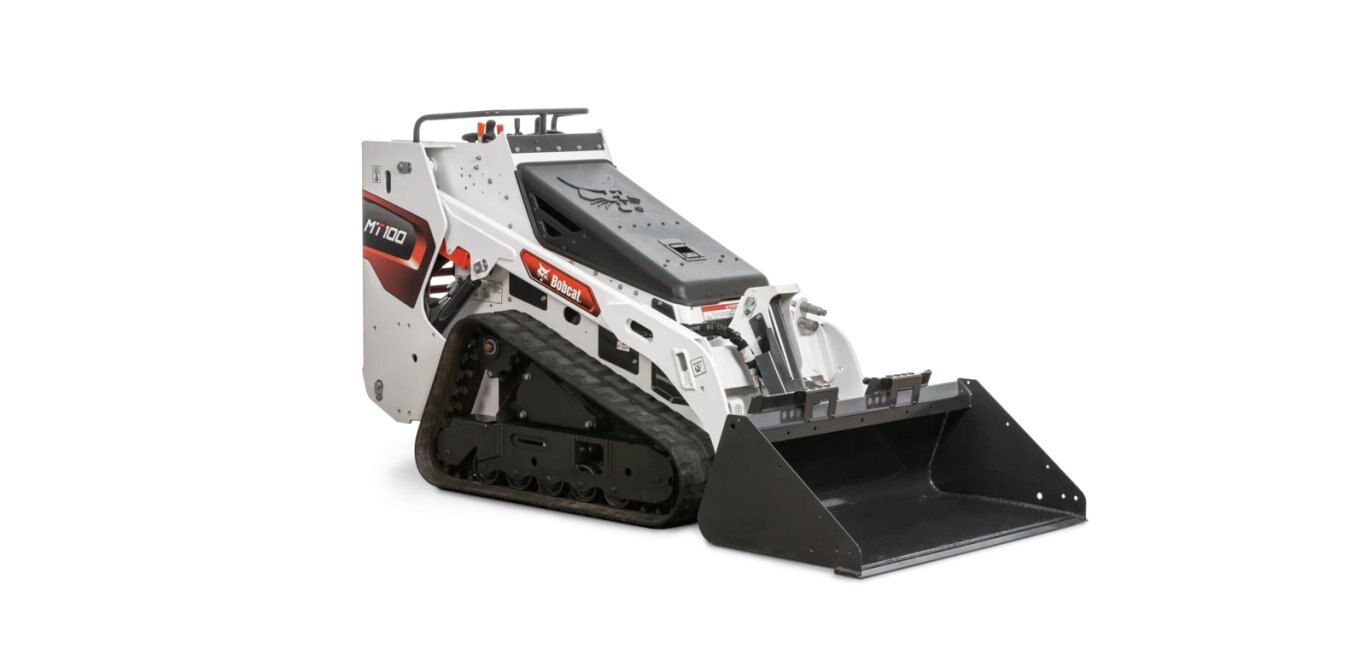

Bobcat MT100 Mini Track Loader

  • Bobcat MT100 Mini Track Loader
  • Bobcat MT100 Mini Track Loader
  • Bobcat MT100 Mini Track Loader
  • Bobcat MT100 Mini Track Loader
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Mini Track Loader

No need for wheelbarrows, shovels or other hand tools when you roll onto jobsites with the Bobcat® MT100 mini track loader.

  • Fit through gates, doorways and other narrow spaces
  • 1,000 lb. rated operating capacity
  • Powerful breakout force and impressive lift height
  • The MT100 travels through gates, doorways and other narrow spaces with ease.
  • The machine also delivers a big boost in power with a 1,000-pound rated operating capacity, powerful breakout force and impressive lift height.
  • The optimized roller spacing on the MT100’s track system improves ride quality for enhanced operator comfort and confidence when working long days.
  • Easy, tool-free access to maintenance areas and advanced safety features, including neutral start interlocks, are standard on the MT100 mini track loader, while sealed rollers eliminate the need for daily roller maintenance and decrease downtime.
  • This loader also features high-flotation tracks that allow it to move across wet and muddy ground.



Specifications
Model
MT100
Category Name
Skid Steer
Year
2025
Sale Type
New
Manufacturer
Bobcat
mt100 key specifications
Width
35.6 in
Operating Weight
3390 lbs
Auxiliary Std Flow
11 gpm
Height To Bucket Hinge Pin
80.9 in
Rated Operating Capacity (ISO)
1000 lbs
engine
Net HP
23.3 hp
Gross HP
25 hp
Horsepower
24.8 hp
Displacement
54.9 cubic in
Fuel Consumption
1.1 gph
Torque (SAE NET)
39.9 ft-lb
Starter Horsepower
3.6 hp
Number Of Cylinders
3
performance
Tipping Load
2898 lbs
Travel Speed
4.1 mph
Operating Weight
3390 lbs
Travel Speed - Low
4.1 mph
Travel Speed - High
4.1 mph
Travel Speed - Reverse
2.9 mph
Lift Breakout Force (SAE)
3330 lbs
Tilt Breakout Force (SAE)
2599 lbs
Rated Operating Capacity (ISO)
1000 lbs
Ground Pressure (Optional Tracks)
4 psi
Ground Pressure (Standard Tracks)
5.3 psi
capacities
Fuel Tank
7 gal
Cooling System
7 qt
Hydraulic Reservoir
2.5 gal
Engine Oil With Filter
3.8 qt
hydraulic system
Bucket Dump
1.6 sec
Pump Capacity
12 gpm
Lower Lift Arm
2 sec
Raise Lift Arm
2.9 sec
Bucket Rollback
1.4 sec
Auxiliary Std Flow
11 gpm
System Relief @ Quick Couplers
2900 psi
dimensions
Width
35.6 in
Height
54.6 in
Length
106.2 in
Track Width
7.1 in
Overall Height
54.6 in
Rollback Angle
22 deg
Max Dump Height
80.9 in
Operating Height
54.6 in
Reach @ Maximum Height
18.6 in
Track Width - Optional
9.8 in
Track Width - Standard
7.1 in
Length Of Track On Ground
41.4 in
Height To Bucket Hinge Pin
80.9 in
Overall Length In Travel Position
84.5 in
drive system
Main Drive
Fully hydrostatic rubber track drive
instrumentation
Hourmeter
Gauge
Fuel Gauge
Gauge
