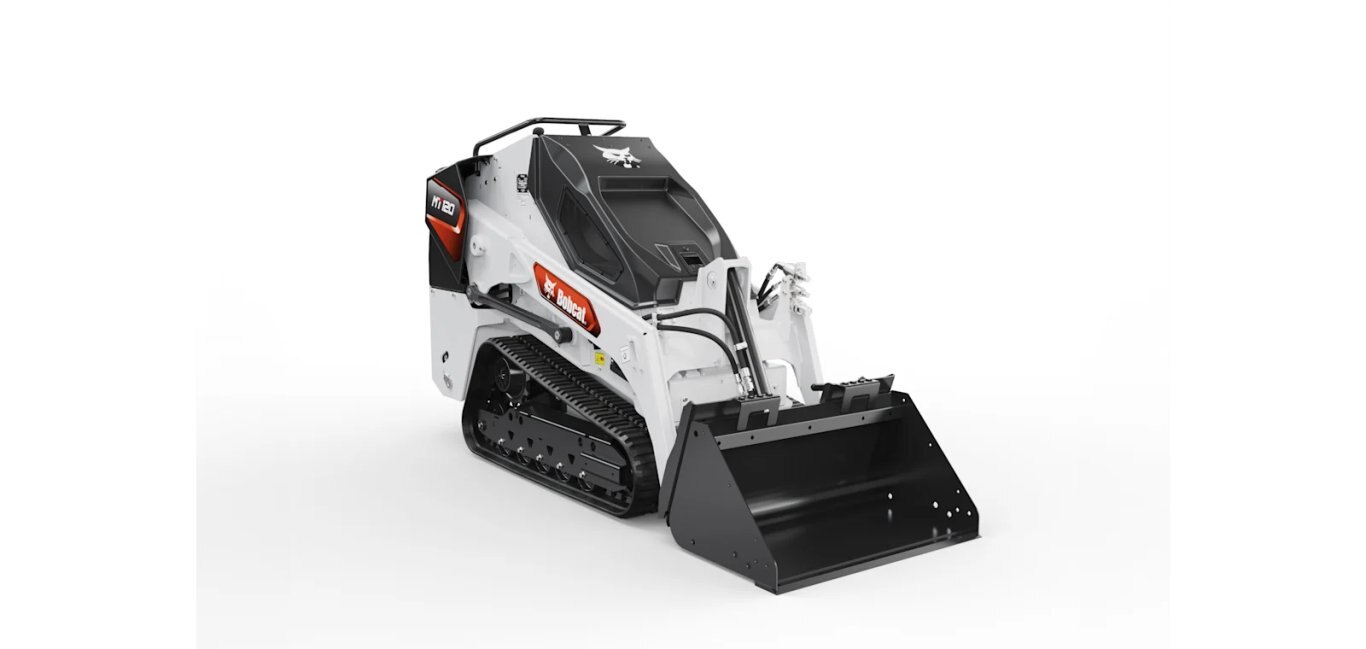

Bobcat MT120 Mini Track Loader

  • Bobcat MT120 Mini Track Loader
  • Bobcat MT120 Mini Track Loader
  • Bobcat MT120 Mini Track Loader
  • Bobcat MT120 Mini Track Loader
  • Bobcat MT120 Mini Track Loader
  • Bobcat MT120 Mini Track Loader
  • Bobcat MT120 Mini Track Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Mini Track Loader

The Bobcat MT120 mini track loader leads its class in lift height and reach, delivering heavy-lifting performance and high value with low overall cost of ownership.

  • 1,200-pound rated operating capacity
  • Best-in-class lift height and reach at 88.2 inches
  • Easy-to-operate pilot controls
  • Low maintenance design with reduced daily upkeep
  • Premium features at a highly competitive price
  • Bobcat MT120 specs include best-in-class lift height and 1,200-pound lift capacity to help you do more with every cycle
  • At just 36 inches wide with standard tracks, the MT120 delivers big performance in tight spaces
  • Smooth, precise controls and premium ride-on platform make every job easier
  • With minimal maintenance and high durability, the Bobcat MT120 price reflects long-term low ownership costs
  • Highly maneuverable with minimal ground disturbance to reduce ground repair



Specifications
Model
MT120
Category Name
Skid Steer
Year
2025
Sale Type
New
Manufacturer
Bobcat
mt120 key specifications
Width
35.6 in
Operating Weight
3720 lbs
Auxiliary Std Flow
11.8 gpm
Height To Bucket Hinge Pin
88.2 in
Rated Operating Capacity (ISO)
1200 lbs
engine
Horsepower
24.5 hp
Displacement
75.2 cubic in
Number Of Cylinders
3
performance
Tipping Load
3469 lbs
Travel Speed
4.7 mph
Operating Weight
3720 lbs
Travel Speed - Reverse
4.7 mph
Rated Operating Capacity (ISO)
1200 lbs
Ground Pressure (Optional Tracks)
3.9 psi
Ground Pressure (Standard Tracks)
4.3 psi
capacities
Fuel Tank
8.1 gal
hydraulic system
Pump Capacity
12 gpm
Auxiliary Std Flow
11.8 gpm
System Relief @ Quick Couplers
3045 psi
dimensions
Width
35.6 in
Height
57.6 in
Length
107.3 in
Reach @ Maximum Height
22.2 in
Track Width - Optional
11 in
Track Width - Standard
9.1 in
Length Of Track On Ground
55.7 in
Height To Bucket Hinge Pin
88.2 in
